Brand Name : LC

Model Number : Rolling ball vibration

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10,000pcs per day

Delivery Time : 35 days

Maximum switch rating : 1-500MA/1.5-2.4VDC

Electrical life endurance : >1,000,000 cycles

Contact resistance : 300mΩ max.(measured 45° tilt)

Switch Angle : 15°~45°

Operating temperature : -10℃±100℃

Solder ability of terminal : 260℃ - 5 seconds/360℃ - 3 seconds

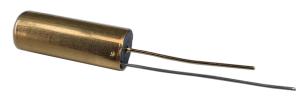

Product Name : Roll Ball Switch

Contact Now

Roll Ball Switch Maximum switch rating 1-500MA/1.5-2.4VDC 1 000 000 cycles

Rolling ball vibration switch Specification

Maximum switch rating: 1-500MA/1.5-2.4VDC

Electrical life endurance: >1,000,000 cycles

Contact resistance: 300mΩ max.(measured 45° tilt)

Switch Angle: 15°~45°

Operating temperature: -10℃±100℃.

Solder ability of terminal: 260℃ - 5 seconds/360℃ - 3 seconds

Coding rule

Easy Installation Roll Ball Switch Contact Resistance 300mΩ Max Operating -10℃±100℃

Dimension

Easy Installation Roll Ball Switch Contact Resistance 300mΩ Max Operating -10℃±100℃

Switch function options.
